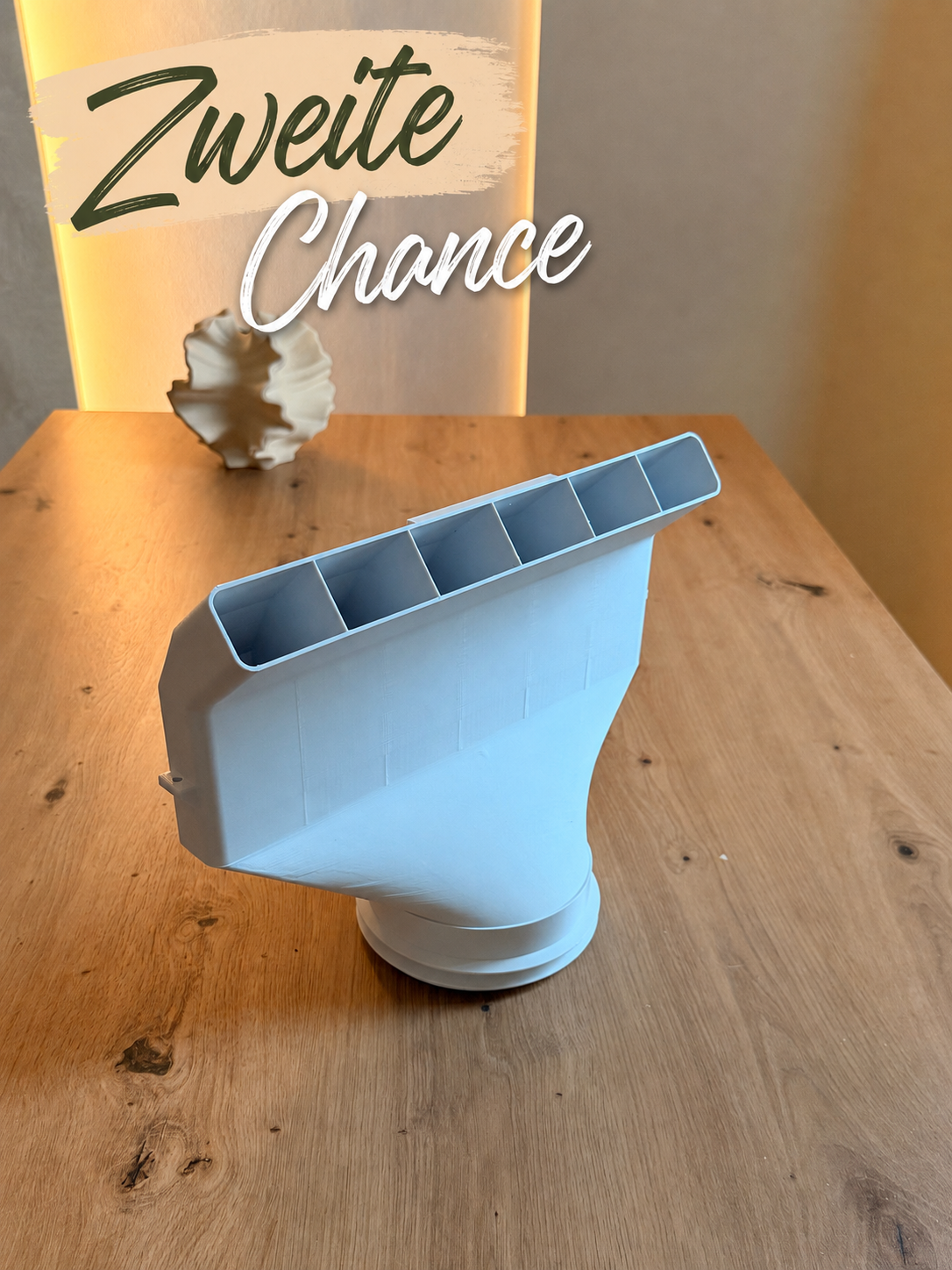

Slim Version - Tilt or Roof Window Adapter for Mobile Air Conditioner - Exhaust Hose Adapter

This adapter allows you to securely and stably attach the exhaust hose of your mobile air conditioner to a tilted window.

The Extra-Slim version was specially developed for windows with limited space or integrated roller shutter boxes. It is available in various widths from 30 to 50 mm.

Important: The specified widths always refer to the widest point of the adapter. Due to manufacturing, a dimensional tolerance of ± 1 mm applies. Therefore, measure the available distance between the window sash and the window frame at the narrowest point of the intended installation area and choose a correspondingly smaller version.

The adapter is made of robust and heat-resistant ABS and is ideal for the warm exhaust air of mobile air conditioners. Side eyelets allow for additional securing with a cord or cable ties if necessary.

🔍 Please check before purchasing

Many mobile air conditioners use similar, but not identical, hose connections.

This adapter is designed for exhaust hoses with an external thread of approx. 149–150 mm.

Please compare the dimensions of your hose before ordering. The internal thread of the adapter has a core diameter of approx. 143–144 mm.

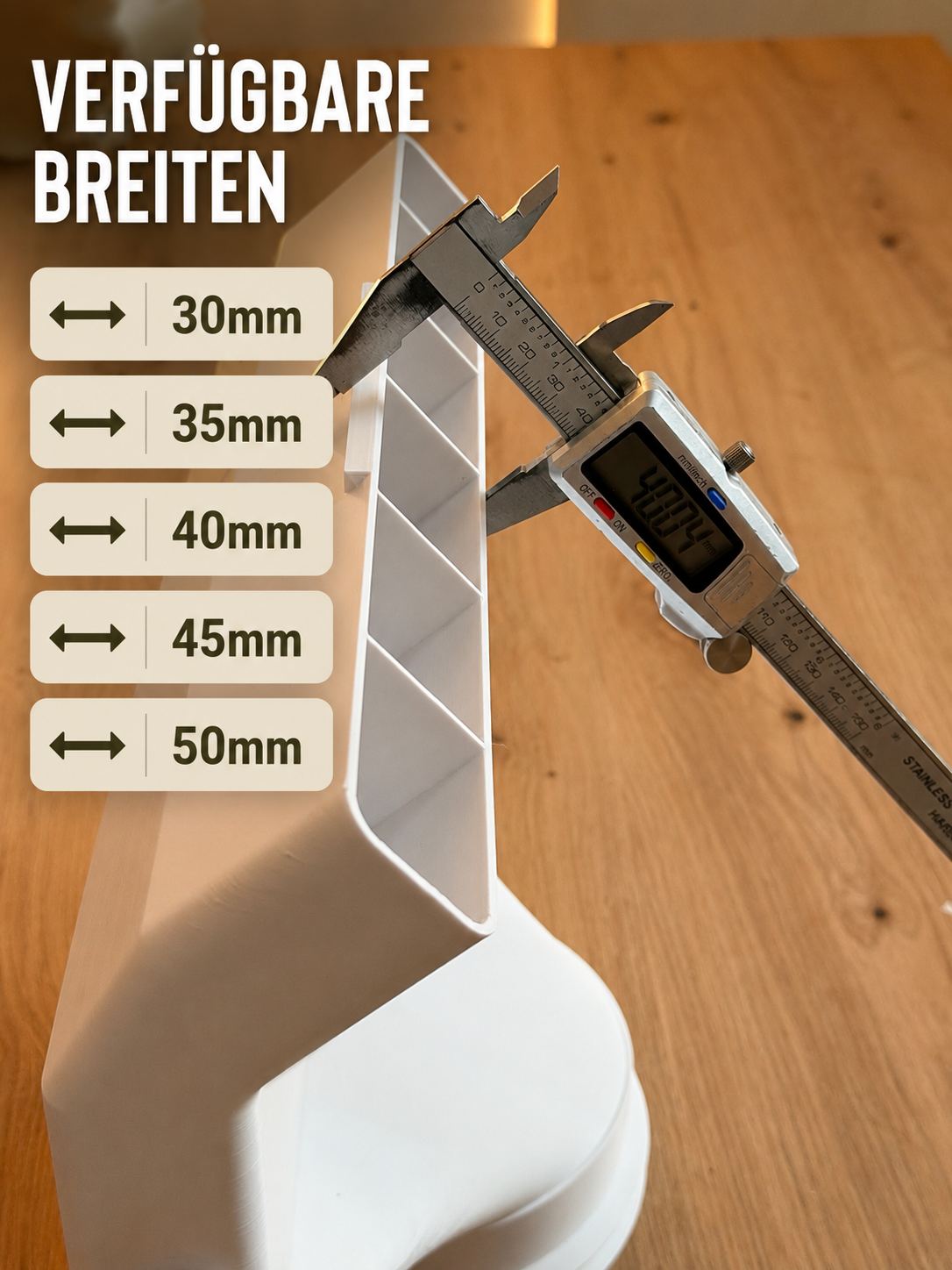

Also, measure the available distance between the tilted window sash and the window frame. The selectable values of 30, 35, 40, 45 or 50 mm each indicate the width of the adapter at its widest point. Due to manufacturing, the actual dimension may deviate by ± 1 mm. Therefore, choose a variant that is sufficiently smaller than the measured distance.

If you are unsure which version fits your window or hose, please feel free to contact me before purchasing. I will be happy to help you.
